Technical Info:

What follows is technical information for users who want to know more about the emulator or want to develop support programs for the emulator or new software for the TRS-80 running on the emulator. Nothing contained here is required to use the emulator.

Return to contents:


Technical info - DMK type virtual disks:

This information on what has become known as the DMK virtual disk format is provided for users wanting to better understand the operation of the emulator and for programmers writing their own emulators wanting to add support for this format and/or the creation of PC utilities to work with the DMK virtual disk format.

This virtual disk format is as close to the way data on a real disk is stored as possible. There is very little added overhead and the data is easily examined and edited using PC based hex editors. The actual design is really quite simple and enables support of ALL the WD-1771 and WD-19xx controller functions and formats. While the design is simple however the programming requirements for this format are much more extensive then for the JV1/JV3 formats.

Disk header:

Virtual disks have a 16 byte disk header which is initialized when the user creates a new virtual disk. This header may be modified before or after a virtual disk has been formatted to change some of its characteristics.

Byte 0 If this byte is set to FFH the disk is `write protected', 00H allows writing.
Byte 1 Number of tracks on virtual disk. Since tracks start at 0 this value will be one greater than the highest track written to the disk. So a disk with 40 tracks will have a value of 40 (28H) in this field after formatting while the highest track written would be 39. This field is updated after a track is formatted if the track formatted is greater than or equal to the current number of tracks. Re-formatting a disk with fewer tracks will NOT reduce the number of tracks on the virtual disk. Once a virtual disk has allocated space for a track it will NEVER release it. Formatting a virtual disk with 80 tracks then re-formatting it with 40 tracks would waste space just like formatting only 40 tracks on an 80 track drive. The emulator and TRS-80 operating system don't care. To re-format a virtual disk with fewer tracks use the /I option at start-up to delete and re-create the virtual disk first, then re-format to save space.

Note: This field should NEVER be modified. Changing this number will cause TRS-80 operating system disk errors. (Like reading an 80 track disk in a 40 track drive)

Byte 2 & 3 This is the track length for the virtual disk. By default the value is 1900H, 80H bytes more than the actual track length, this gives a track length of 6272 bytes. A real double density track length is aprox. 6250 bytes. This is the default value when a virtual disk is created. Values for other disk and format types are 0CC0H for single density 5.25" floppies, 14E0H for single density 8" floppies and 2940H for double density 8" floppies. The max value is 2940H. For normal formatting of disks the values of 1900H and 2940H for 5.25" and 8" are used. The emulator will write two bytes and read every second byte when  in single density to maintain proper sector spacing, allowing mixed density disks. Setting the track length must be done before a virtual disk is formatted or the disk will have to be re-formatted and since the space for the disk has already been allocated no space will be saved.

WARNING: Bytes are entered in reverse order (ex. 2940H would be entered, byte 2=40, byte 3=29).
Note: No modification of the track length is necessary, doing so only saves space and is not necessary to normal operation. The values for all normal 5.25" and 8" disks are set when the virtual disk is created. DON'T modify the track length unless you understand these instructions completely. Nothing in the PC world can be messed up by improper modification but any other virtual disk mounted in the emulator with an improperly modified disk could have their data scrambled.

Byte 4 Virtual disk option flags.

Bit 4 of this byte, if set, means this is a single sided ONLY disk. This bit is set if the user selects single sided during disk creation and should not require modification. This flag is used only to save PC hard disk space and is never required.

Bit 6 of this byte, if set, means this disk is to be single density size and the emulator will access one byte instead of two when doing I/O in single density. Double density can still be written to a single density disk but with half the track length only 10 256 byte sectors can be written in either density. Mixed density is also possible but sector timing may be off so protected disks may not work, a maximum of 10 256 byte sectors of mixed density can be written to a single density disk. A program like "Spook House" which has a mixed density track 0 with 1 SD sector and 1 DD sector and the rest of the disk consisting of 10 SD sectors/track will work with this flag set and save half the PC hard disk space. The protected disk "Super Utility + 3.0" however has 6 SD and 6 DD sectors/track for a total of 12 256 byte sectors/track. This disk cannot be single density.

This bit is set if the user selects single density during disk creation and should not require modification. This flag is used only to save PC hard disk space and is never required.

Bit 7 of this byte, if set, means density is to be ignored when accessing this disk. The disk MUST be formatted in double density but the emulator will then read and write the sectors in either density. The emulator will access one byte instead of two when doing I/O in single density.

This flag was an early way to support mixed density disks it is no longer needed for this purpose. It is now used for compatibility with old virtual disks created without the double byte now used when in single density. This bit can be set manually in a hex editor to access old virtual disks written in single density.

Byte 5-B reserved for future options
Byte C-F Must be zero if virtual disk is in emulator's native format.

Must be 12345678h if virtual disk is a REAL disk specification file used to access REAL TRS-80 floppies in compatible PC drives.

Track Header Each track has a 128 (80H) byte header which contains an offset to each IDAM in the track. This is created during format and should NEVER require modification. The actual track data follows this header and can be viewed with a hex editor showing the raw data on the track. Modification should not be done as each IDAM and sector has a CRC, this is just like a real disk, and modifying the sector data without updating the CRC value will cause CRC errors when accessing the virtual disk within the emulator.

Note: Modification within MSDOS could however be done to emulate a protected disk in the TRS-80 emulator.

Track header:

Each side of each track has a 128 (80H) byte header which contains an offset pointer to each IDAM in the track. This allows a maximum of 64 sector IDAMs/track. This is more than twice what an 8 inch disk would require and 3.5 times that of a normal TRS-80 5 inch DD disk. This should more than enough for any protected disk also.

These IDAM pointers MUST adhere to the following rules.

Each IDAM pointer has two flags. Bit 15 is set if the sector is double density. Bit 14 is currently undefined. These bits must be masked to get the actual sector offset. For example, an offset to an IDAM at byte 90h would be 0090h if single density and 8090h if double density.

Track data:

The actual track data follows the header and can be viewed with a hex editor showing the raw data on the track. If the virtual disk doesn't have bits 6 or 7 set of byte 4 of the disk header then each single density data byte is written twice, this includes IDAMs and CRCs (the CRCs are calculated as if only 1 byte was written however). The IDAM and sector data each have CRCs, this is just like on a real disk.

Modification should not be done since doing so without updating  the CRCs would cause data errors. Modification could be done however to create protected tracks for importing protected disks to virtual disk format. Examples of disks created using this technique are "Super Utility+ 3.0" and "Forbidden City".

Return to contents:


Technical info - JV1/JV3 type virtual disks:

This emulator is capable of reading and writing to JV1 and JV3 type virtual disks. Support for this type of virtual disk is limited by both the limits of the format type and this emulators support of it.

The emulator supports read sector, read address and write sector commands to the JV1 type virtual disk. JV1 disks are single density only and can be up to 254 tracks long and always have a protected directory track at track 17. Read track and write track commands are not supported for this disk type. This disk  type can be write protected from the "virtual floppy disk selection screen" but the write protect status will always default to off when ever a JV1 disk is opened.

The emulator supports read sector, read address and write sector commands to the JV3 type virtual disk. JV3 disks are single/double density and can be up to 96 tracks long. Read track and write track commands are not supported for this disk type. This disk  type can be write protected from the "virtual floppy disk selection screen" but the write protect status will always default to what ever status is in the the JV3 virtual disk file (byte 21FFh) when the disk is opened, the write protect status is not updated. The density and CRC error flags are also supported but not updated. DAM types FB/F9 report FB and F8/FA report F8. Sector writes that change the DAM type from what is in the virtual disk file are not supported. This will not cause problems unless you try to change the protection status of a directory track. Standard IBM sector sizes are supported of 128, 256, 512 & 1024 bytes. A second sector header block is not supported.

Return to contents:


Technical info - REAL TRS-80 floppy disks:

This emulator is capable of reading, writing and formatting REAL TRS-80 floppy disks in compatible PC floppy drives. Support for this is limited by both the limits of the NEC type floppy disk controller and this emulators support of it.

Depending on compatibility of your PC you should be able to read/write single density & double density 5.25" and 3.5" disks in 360k and 720k PC floppy drives (commonly known as low/double density drives, DD). You should be able to read/write double density 5.25" and 3.5" disks in 1.2meg and 1.44meg PC floppy drives (commonly known as high density drives, HD).

Eight fixed sector length REAL floppy specification virtual disks are supplied to read/write 256 byte/sector floppies in a PC's A: and B: drives.

FDD0_360.DSK Reads 40 track disks on a PC A: 360k (DD) drive.
FDD1_360.DSK Reads 40 track disks on a PC B: 360k (DD) drive
FHD0_360.DSK Reads 40 track disks on a PC A: 1.2meg (HD) drive. (double steps head)
FHD1_360.DSK Reads 40 track disks on a PC B: 1.2meg (HD) drive. (double steps head)
FHD0_720.DSK Reads 80 track disks on a PC A: 1.2meg (HD) drive.
FHD1_720.DSK Reads 80 track disks on a PC B: 1.2meg (HD) drive.
F350_720.DSK Reads 80 track 3.5" disks on a PC A: 1.44meg (HD) drive.
F351_720.DSK Reads 80 track 3.5" disks on a PC B: 1.44meg (HD) drive.

Eight variable sector length REAL floppy specification virtual disks are supplied to read/write 128-1024 byte/sector floppies in a PC's A: and B: drives. These specification disks are slower than the fixed length ones and should only be used on disks un-readable with the fixed length specification disks.

VDD0_360.DSK Reads 40 track disks on a PC A: 360k (DD) drive.
VDD1_360.DSK Reads 40 track disks on a PC B: 360k (DD) drive
VHD0_360.DSK Reads 40 track disks on a PC A: 1.2meg (HD) drive. (double steps head)
VHD1_360.DSK Reads 40 track disks on a PC B: 1.2meg (HD) drive. (double steps head)
VHD0_720.DSK Reads 80 track disks on a PC A: 1.2meg (HD) drive.
VHD1_720.DSK Reads 80 track disks on a PC B: 1.2meg (HD) drive.
V350_720.DSK Reads 80 track 3.5" disks on a PC A: 1.44meg (HD) drive.
V351_720.DSK Reads 80 track 3.5" disks on a PC B: 1.44meg (HD) drive.

Because of the limitations of the PC's NEC type floppy disk controller the PC cannot read most protected disks. The emulator does not support the track read commands with REAL floppies. Because of limitations of the PC's controller most disk zap utilities (like Hyperzap and Super Utility) cannot work with REAL floppies. Also the write track command has to translate format data to the PC's controller form and is therefore unable to format anything but standard sectors. Because of the translation for PC disk I/O, access to real TRS-80 disks is apt to be slow, formatting in some cases can take as long as 8 seconds/track. This is unavoidable and should not present problems since REAL disk support is mainly for importing your existing TRS-80 disks and transferring data and programs to the TRS-80. If your PC has a hard time reading your TRS-80 disks then use the emulator to format a disk on the PC and then copy the disk on the TRS-80 to the PC formatted disk, this should correct most problems.

Some PC's cannot read SD TRS-80 disks and still others cannot read any TRS-80 disks without errors. This is a compatibility problem with different PC controllers and not a problem with the emulator. Try using a different brand of PC or an older model PC. If you are still unable to read your disks and really need the data converted, e-mail me and maybe I can convert the disk for you (my PC has been able to read every disk I've tried so far).

Return to contents:


Technical info - Virtual hard disks:

This information on what are known as the HDV virtual hard disks is provided for users wanting to better understand the operation of the emulator and for programmers writing their own emulators wanting to add support for this format and/or the creation of PC utilities to work with the HDV virtual disk format.

These emulators support the existing HDV format and have extended the format to support 1024 cylinder hard drives using the WD1010 hard drive controller emulation.

Disk header:

Virtual hard disks have a 256 byte disk header which is initialized when the user creates a new virtual disk. This header may be modified before or after a virtual disk has been formatted to change some of its characteristics.

Byte 0 & 1 Identifier 56h & CBh
Byte 2 Version: set to 11h when file created (version 1.1)
Byte 3 Checksum of bytes 0-31 (excepting byte 3) XORed with 4Ch
Byte 4 Number of 256 byte blocks in header: should be 1
(anything other than 1 is not supported by this emulator)
Byte 5 -unused- Currently set to 4 for compatibility
Byte 6 Media type: 0 for hard disk
Byte 7 Bit 7 set if hard disk is write protected, all other bits -unused-
Byte 8 & 9 -unused-
Byte 10 FFh = created with this emulator
Byte 11 -unused- (DOS type)
Byte 12 Creation month
Byte 13 Creation day
Byte 14 Creation year (offset from 1900)
Byte 15-26 -unused-
Byte 27 If 'byte 10' = FFh then bits 0-1 contains high bits of cylinder count (max value 1024)
else -unused-
Byte 28 If 'byte 10' = FFh then contains low byte of cylinder count
else contains total number of cylinders on disk
Byte 29 Number of sectors per cylinder
This value must be divisible by 32. A value of 00h = 256 sectors
Byte 30 -unused- but is set to 'byte 29' divided by 16 when file created (granules per cylinder)
Byte 31 -unused- but is set to 1 when file created (directory cylinder)
Byte 32-63 Volume label, set to TRS80 when file is created (31 bytes terminated by 00h)
Byte 64-71 -unused- (Creation filename)
Byte 72-255 -unused-

Return to contents:


Technical Info - Enhanced Z80 instructions

The emulator has a set of enhanced Z80 instructions. These instructions allow TRS-80 programs to interface with the PC's disk drives, ports, memory and other hardware. These instructions also add high level math functions to the Z80 instruction set.

NOTE: These instructions are only available in the emulators.

The following links contain a list of the enhanced instructions and documentation for each instruction.

Enhanced Instruction Documentation (on-line)

Enhanced Instruction Documentation (Microsoft Word 123k)

Return to contents:


Technical Info - Port mapped PC I/O commands

In addition to the enhanced Z80 instructions described above the emulator can also interface with the PC using port mapped commands. These commands provide an easier to use interface when writing programs in BASIC or other high level language eliminating the need for machine language calls.

The port mapped I/O commands allow access to the 13 I/O functions between 30h and 3Fh as defined in the Enhanced Instruction Documentation. These port mapped I/O commands also allow access to the PC's I/O ports. The Z80 ports 50h to 57h can be mapped to any of the PC's I/O ports.

Port 70h is used execute commands, define which data register or PC port, port 71h points to and read the status of the previous command.

Outputting a value of 30h to 3Fh to port 70h executes the corresponding enhanced Z80 instruction. The status of the command can be checked by a read to port 70h. In most cases a non-zero value indicates an error condition.

Outputting a value of 40h to 43h to port 70h defines which register port 71h points to. The registers are:

40h = DE register
41h = HL register
42h = BC register
43h = AF register

After outputting a value to port 70h the LSB of the register is available at port 71h, the value can be read or written. After accessing port 71h the MSB of the value will be available and can be read or written. After a second I/O to port 71h the LSB value will be available again. The data available at port 71h toggles between the LSB & MSB values of the defined register each time you access it. For example, to load a register HL with 3C00h you could use the following BASIC program:

10 OUT 112,65 : REM DEFINE HL REGISTER, BASIC WANTS DECIMAL NUMBERS
20 OUT 113,0  : REM LOAD L WITH 00H
30 OUT 113,60 : REM LOAD H WITH 3CH

Reading the register is done the same way except using INP(113) instead. Once the registers required by the desired 30h to 3Fh command are loaded, an output of that command to port 70h is done. The returned data, if any, is then available in the same registers.

Outputting a value of 80h to 87h to port 70h defines which PC port, Z80 ports 50h to 57h point to. After outputting a value to port 70h the LSB of the PC port number is available at port 71h, the value can be read or written. The data available at port 71h toggles between the LSB & MSB values of the defined port each time you access it. For example, to point Z80 port 53h to the PC game port at 201h and then read port 201h you could use the following BASIC program:

10 OUT 112,131 : REM DEFINE PORT 53H, BASIC WANTS DECIMAL NUMBERS
20 OUT 113,1   : REM LOAD LSB WITH 01H
30 OUT 113,2   : REM LOAD MSB WITH 02H
40 A=INP(83)   : REM READ Z80 PORT 53H WHICH POINTS TO PC PORT 201H
50 PRINT A     : REM A CONTAINS THE JOYSTICK STATUS FROM PC PORT 201H

Some program listings of BASIC programs are available as examples of using the port mapped I/O commands:

BASIC Examples

Return to contents:


Technical info - Keyboard maps:

The TRS-80 emulators support two keyboard maps. These files determine the relationship between the PC keyboard and the TRS-80 keyboard. Each key on the PC keyboard can be mapped to a key on the TRS-80 keyboard. More than one PC key can be mapped to the same TRS-80 key (ex. Backspace & left arrow are both mapped to left arrow on the TRS-80 keyboard).

Each keyboard map file contains 512 bytes which are organized in pairs. The first 128 byte pairs are unshifted keys the last 128 are the same keys shifted. The PC communicates with its keyboard using scancodes. Each PC key has a scancode and each scancode has a matching 2 byte value in the keyboard map. For example the 'ENTER' key has a scancode of 28, therefore the 2 keyboard map values at 2 times 28 plus 1 (57), contains the TRS-80 keyboard value for an unshifted 'ENTER' key. The map values 2 times 28 plus 257 (313), contains the TRS-80 keyboard value for a shifted 'ENTER' key.

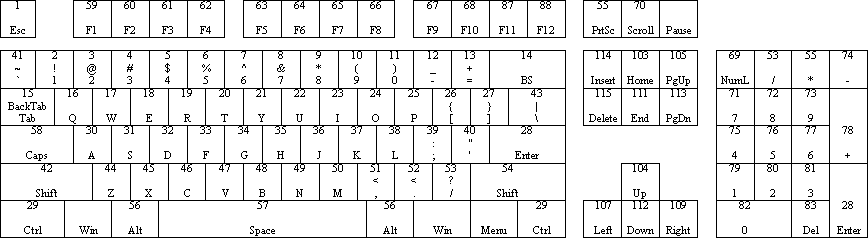

Below is a graphic of a standard PC keyboard layout showing the scancodes for each key. All the scancodes shown correspond to a keyboard map entry. The PC key's table entry can be found by multiplying the scancode by 2 and adding 1 for unshifted values or adding 257 for shifted values.

Note: The scancodes for the cursor keys are not the actual scancodes but the scancode plus 32 because the actual scancodes are the same as for the number pad. The PC prefixes these keys with a special code. The emulator adds 32 to these prefixed scancodes so they can have their own keyboard map entries.

As said before each scancode points to a two byte pair. The second byte is the entry type, it has the following values:

0 Unshifted TRS-80 key
When this key is pushed a value corresponding to the first byte of this map entry will be stored in the TRS-80 keyboard memory matrix.
1 Shifted TRS-80 key
When this key is pushed a value corresponding to the first byte of this map entry will be stored in the TRS-80 keyboard memory matrix.
A shift will also be stored in the matrix.
128 No function
Pushing this key does nothing in the emulator
129 Command function
These keys execute emulator command functions like rebooting the emulator (F10). These map entries should not be modified. Incorect entries to this type of entry can result in emulator functions not working, emulator lockups and system crashes.
130 Shift Key
Whenever this key is pushed and held the emulator will use the second half of the keyboard map. The first byte of this type of entry contains the type of shift key. For the Model 1 this value should always be 1. For the Model III, 4 & 4P a value of 1 means a left shift and a value of 2 means a right shift.

The following table is to be used to find the first byte of the keyboard map value for entry type 0. The values in this table are in hex.

For example. If you look at the PC scancode graphic you will see that the 'ESC' key has a scan code of 1. If you look at the 3rd byte of the PC80, PC81 or PC83 keyboard map file you will see a value of 38 (26 hex). Looking at the able above shows a value of 26H represents the TRS-80 'BREAK' key. The 'BREAK' key is in row 6 column 2 for the TRS-80 keyboard matrix.

The 4th byte of the keyboard map file is a zero. This means the key is unshifted. If this value was 1 then anytime 'BREAK' was pushed the emulator would also push the TRS-80's shift key. This features allows keys that are not shifted on a PC keyboard to be shifted on the TRS-80 keyboard (like '=') or shifted keys to be unshifted (like "@").

The following table is to be used to find the first byte of the keyboard map value for entry type 1. The values in this table are in hex.

For example. If you look at the PC scancode graphic you will see that the '= +' key has a scan code of 13. If you look at the 27th byte of the PC80, PC81 or PC83 keyboard map file you will see a value of 85 (55 hex). Looking at the able above shows a value of 55H represents the TRS-80 '- =' key. The '- =' key is in row 5 column 5 for the TRS-80 keyboard matrix.

The 4th byte of the keyboard map file is a one. This means the key is shifted. When this key is pushed the TRS-80 will be sent the '- =' key along with a shift key.

Most of the PC keys mapped to the TRS-80 layout in the first half of the keyboard map will have an entry type of 0 since this section is used when neither of the PC shift keys are pushed. Most of the PC keys mapped to the TRS-80 layout in the second half of the keyboard map will have an entry type of 1 since this section is used when either of the PC shift keys are pushed. Also, in most cases the first byte of a key entry in the first half of the map will be the same as the one in the second part of the map since it is just the shifted value of the other. Some of the PC keys however will have very different values in each half of the map (like' = +') for example because of the differences between the PC and TRS-80 keyboard layouts.

I hope this documentation will give users the information needed to create custom keyboard layouts.

I want to thank Knut Roll-Lund (from Norway) for his help in documenting the keyboard map files. You can see how he made his own keyboard layout and download it at: http://knut.one/~kr-lund/emul-kbd.htm

Return to contents:


Technical Info - Emulator port/memory maps:

The Model 1 emulator memory map is as follows:

Memory range Read Write
37E0 Interrupt type (RTC or disk) -unused-
37E1 -unused- FDC select register
37E8 & 37E9 Read printer status Output to printer
37EC FDC status register FDC command register
37ED FDC track register FDC track register
37EE FDC sector register FDC sector register
37EF FDC data register FDC data register

The Model 1 emulator port map is as follows:

Port range Read Write
FC, FD & FF Cassette data cassette data
cassette motor control
Video mode (64/16 or 32/16)
FE Cassette data CPU speed control
Bit0=0 & bit1=0 = 1.774mhz
Bit0=1 & bit1=0 = 4mhz
Bit0=1 & bit1=1 = 8mhz
Bit0=0 & bit1=1 = 1mhz
EB RS-232 Receiver holding register RS-232 Transmitter holding register
EA RS-232 UART status RS-232 UART & modem control
E9 RS-232 Configuration sense switches RS-232 Baud rate load
E8 RS-232 Modem status register RS-232 Master reset
CF HDC Status Register HDC Command Register
CE HDC Sector Size/Drive#/Head#
Bits 0-2: Head Number (0-7)
Bits 3-4: Drive Number (0-3)
Bits 5-6: Sector Size
(only 256 byte sectors supported)
HDC Sector Size/Drive#/Head#
CD HDC Cylinder Number MSB (bits 0-1 only) HDC Cylinder Number MSB (bits 0-1 only)
CC HDC Cylinder Number LSB HDC Cylinder Number LSB
CB HDC Sector Number HDC Sector Number
CA HDC Sector Count register (unsupported) HDC Sector Count register (unsupported)
C9 HDC Error Status Register HDC Write Precomp Cylinder
C8 HDC Data Port HDC Data Port
C1 HDC Control Register
Bit 3   : If set, enables controller
Bit 4   : If set, resets controller
HDC Control Register
C0 HDC Write Protect Port
Bit 0   : INTRQ
Bit 1   : HWPL (set if any drive WPed)
Bit 4-7: Drive 3-0 WPed
-unused-
B9 -unused- Orchestra-85 left channel
B5 -unused- Orchestra-85 right channel
0B VS-100 status bit 7 (set if not-busy) VS-100 phoneme data

The Model III/4 emulator supports the TRS-80 Model 4 port map as follows:

Port range Read Write
FC-FF mode output latch & 500/1500 baud cassette data cassette data
MicroLabs Model 3 Hi-Res graphics
F8-FB read printer status (also mapped at 37E8-37E9) output to printer (also mapped at 37E8-37E9)
F4-F7 -unused- drive select
F3 FDC data register FDC data register
F2 FDC sector register FDC sector register
F1 FDC track register FDC track register
F0 FDC status register FDC command register
EC-EF resets RTC interrupt mode output latch
EB RS-232 Receiver holding register RS-232 Transmitter holding register
EA RS-232 UART status RS-232 UART & modem control
E9 RS-232 Current baud rate & UART configuration RS-232 Baud rate load
E8 RS-232 Modem status register RS-232 Master reset
E4-E7 read NMI status write NMI mask register
E0-E3 read MI status write MI mask register
CF HDC Status Register HDC Command Register
CE HDC Sector Size/Drive#/Head#
Bits 0-2: Head Number (0-7)
Bits 3-4: Drive Number (0-3)
Bits 5-6: Sector Size
(only 256 byte sectors supported)
HDC Sector Size/Drive#/Head#
CD HDC Cylinder Number MSB (bits 0-1 only) HDC Cylinder Number MSB (bits 0-1 only)
CC HDC Cylinder Number LSB HDC Cylinder Number LSB
CB HDC Sector Number HDC Sector Number
CA HDC Sector Count register (unsupported) HDC Sector Count register (unsupported)
C9 HDC Error Status Register HDC Write Precomp Cylinder
C8 HDC Data Port HDC Data Port
C1 HDC Control Register
Bit 3   : If set, enables controller
Bit 4   : If set, resets controller
HDC Control Register
C0 HDC Write Protect Port
Bit 0   : INTRQ
Bit 1   : HWPL (set if any drive WPed)
Bit 4-7: Drive 3-0 WPed
-unused-
9C-9F -unused- Model 4P boot ROM enable
90-93 -unused- sound option
8E hi-res graphics - display mode register display mode register
8D hi-res graphics - Y display offset Y display offset
8C hi-res graphics - X display offset X display offset
84-87 -unused- options register
83 hi-res graphics - control register control register
82 hi-res graphics - data port data port
81 hi-res graphics - Y address Y address
80 hi-res graphics - X address X address
79 -unused- Orchestra-90 left channel
75 -unused- Orchestra-90 right channel
0B VS-100 status bit 7 (set if not-busy) VS-100 phoneme data
Special EC-EF:
Bit 7 of port enhances the CPU fast bit 6.
If bit 7 is set and bit 6 clear then speed is 1mhz.
If bit 7 is set and bit 6 set then speed is 8mhz.
If the user has selected turbo speed this port has no effect on speed.

Both the Model 1 and Model III/4 emulators support a TRS-80 enhanced port map as follows:

Port range Read Write
71 I/O data register I/O data register
70 I/O status register I/O command register
6F -unused- re-calibrate joystick
6D month in BCD format joystick-keyboard map
6C day in BCD format joystick-keyboard map
6B year in BCD format joystick-keyboard map
6A hours in BCD format joystick-keyboard map
69 minutes in BCD format joystick-keyboard map
68 seconds in BCD format
Reading this port loads the ports 67-6C with the PC's system date and time.
joystick-keyboard map
66 -unused- joystick-keyboard map
65 -unused- joystick-keyboard map
64 Axis 2 Y coordinate of joystick joystick-keyboard map
63 Axis 2 X coordinate of joystick joystick-keyboard map
62 Axis 1 Y coordinate of joystick joystick-keyboard map
61 Axis 1 X coordinate of joystick joystick-keyboard map
60 buttons pushed and locked axis map options and locked axis
5F get mouse sensitivity (0-15) set mouse sensitivity (0-15)
5E -unused- set mouse max Y coordinate
5D -unused- set mouse max X coordinate
5C -unused- set mouse min Y coordinate
5B -unused- set mouse min X coordinate
5A get mouse current Y coordinate set mouse current Y coordinate
59 get mouse current X coordinate set mouse current X coordinate
58 get mouse buttons set mouse buttons
50-57 input from PC I/O port
(as defined by port 70 commands)
output to PC I/O port
(as defined by port 70 commands)

Return to contents:
