Sanguino based device reader

Sanguino

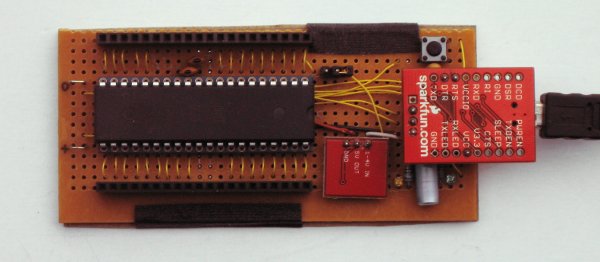

This board is my implementation of the Sanguino an Arduino compatible platform based in the Atmel AT Mega (AVR) range of microcontrollers.

There is no standard PCB for the Sanguino, so I made it with some modifications.

The projects realised are listed below. It is not my intention to build a complete multi-programmer out of this, although it is possible. Merely I want to be able to read and analyse old devices for better understanding and maybe replication (using more modern devices and separate programmers).


Last update: 2012-09-22
